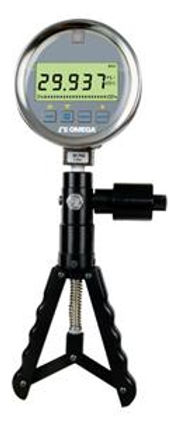

Pressure calibration kit (Omega DPG4000)

Kit includes the DPG4000 digital gauge, hydraulic hand pump, rugged carrying case, and a selection of fittings and hose. Kits with ranges 0 to 10,000 psi hydraulic pump is included.



The DPG4000 takes the concept of a test gauge to a new level. It combines the accuracy of digital technology with the simplicity of an analog gauge, delivering performance, ease of use, and a feature set unmatched in the pressure measurement world. Setup of the DPG4000 is fast and straightforward, involving a menu driven display with minimal text and intuitive functions. The gauge is simple enough to be used anywhere in the world, without the need for multilingual displays.

Features:

  • Very High Accuracy: ±0.05% FS.

  • Temperature Compensated: 0 to 50 ≗C.

  • Range: 0 to 10,000 psi.

  • Displays in 18 Standard or Custom Engineering Units.

  • Displays Ambient Temperature in ℃ or ℉.

  • Large, Backlit, 5-Digit Display with 16.5 mm (0.65") High Digits and 20-Segment Bar Graph.

  • Rugged Stainless Steel Case Meets NEMA 4 (IP65) Rating.

  • Min/Max Recall.

  • Adjustable Tare Zeros Large System Offsets.

Powerserv Pressure Calibration Kit Omega DPG4000
Powerserv Pressure Calibration Kit Omega DPG4000

Powerserv kit includes the DPG4000 digital gauge, hydraulic hand pump, rugged carrying case, selection of fittings and hose
